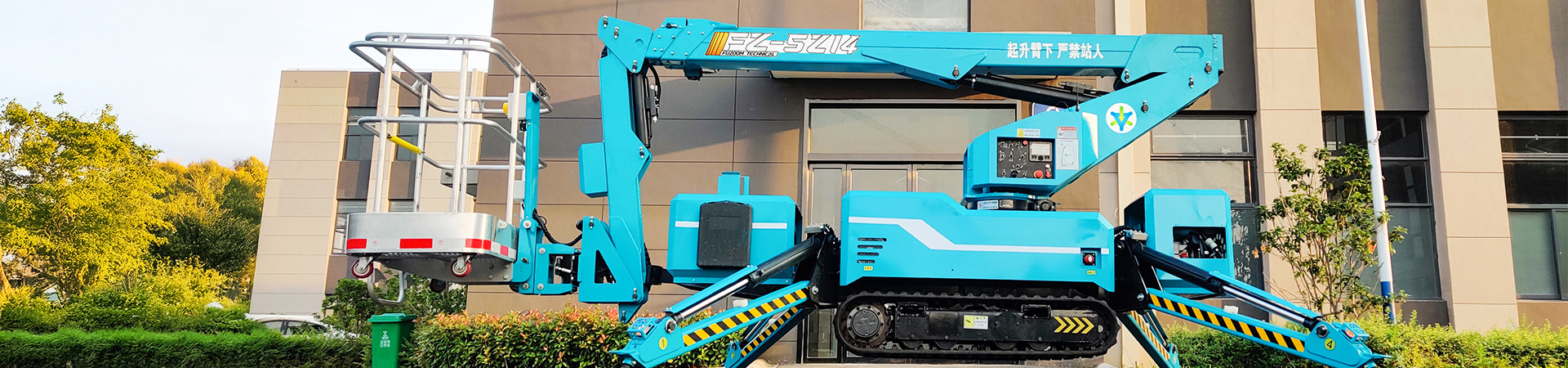

FZ-SZ14

Telescopic Type

Overview Specifications Standard and Options Documentation Operation video

FZ-SZ14

• Compact Design • Intuitive control system • Wireless Remote Control • Adjustable outreach • Easy to Operate and Maintenance • All-Terrain Performance • Dual Power Source

Send Inquiry

Parameters	FZ-SZ14（EV + AC）	FZ-SZ14（Diesel + AC）
Working Height	14m	14m
Articulation Height	12m	12m
Wind Test	12.5m/s	12.5m/s
Outreach	5.8m(230kg) 7m(120kg)	5.8m(230kg) 7m(120kg)
Boom Tilting	0 to 80°	0 to 80°
Jib Tilting	+80%-90°	+80%-90°
Basket Rotation	+90%-90°	+90%-90°
Turret Rotation	360° (Discontinuous)	360° (Discontinuous)
Max Lift Capacity	230 kg (2 persons)	230 kg (2 persons)
Basket Size	1.25 x 0.68 x 1.1m	1.25 x 0.68 x 1.1m
Gradeability	17°(30%)	17°(30%)
Diving Speed	0-1.5km/h	0-1.5km/h
Weight	2000 kg	2000 kg
Diesel Engine	-	Kubota (Japan)
Fuel Tank Capacity	-	15L
Hydraulic Oil Tank Capacity	35L	35L
Battery	173ah LiFePO4	-
Battery Capacity	13.286Kwh and 76.8V	-
Electric Power	220V single phase electric motor	220V single phase electric motor
Working Temperature	-20°~40° celsius	-20°~40° celsius

Standard Features		Optional
✔	Powerful KUBOTA diesel engine (Diesel+AC)	✔	Engine heater
✔	Single-phase electric motor	✔	Non-marking tracks
✔	173ah LiFePO4 Battery (EV+AC)	✔	Larger plates for outriggers
✔	230 V power outlets on the platform	✔	LED spotlights for the platform
✔	2 persons with tools 230kg load capacity platform	✔	Hose to the platform (air/water)
✔	Automatic leveling ofthe outriggers	✔	Diesel Engine + Electrical
✔	Proportional outreach monitoring system	✔	Battery + Electrical
✔	Electric rotation of the platform	✔	Basket rotation
✔	Hand pump-powered emergency lowering
✔	Lower controls with integrated service display
✔	Crawler all-terrain tracks
✔	Wireless joysticks control
✔	Overload alarm
✔	Signal horn
✔	Remote control for driving and outriggers
✔	Outrigger beacons
✔	Double-person platform
✔	Tool trays on the platformy

Porduct Manual FZ-SZ14.pdf

File size: 4.8MB
