FZ-SZ30

Articulating Type

Overview Specifications Standard and Options Documentation Operation video

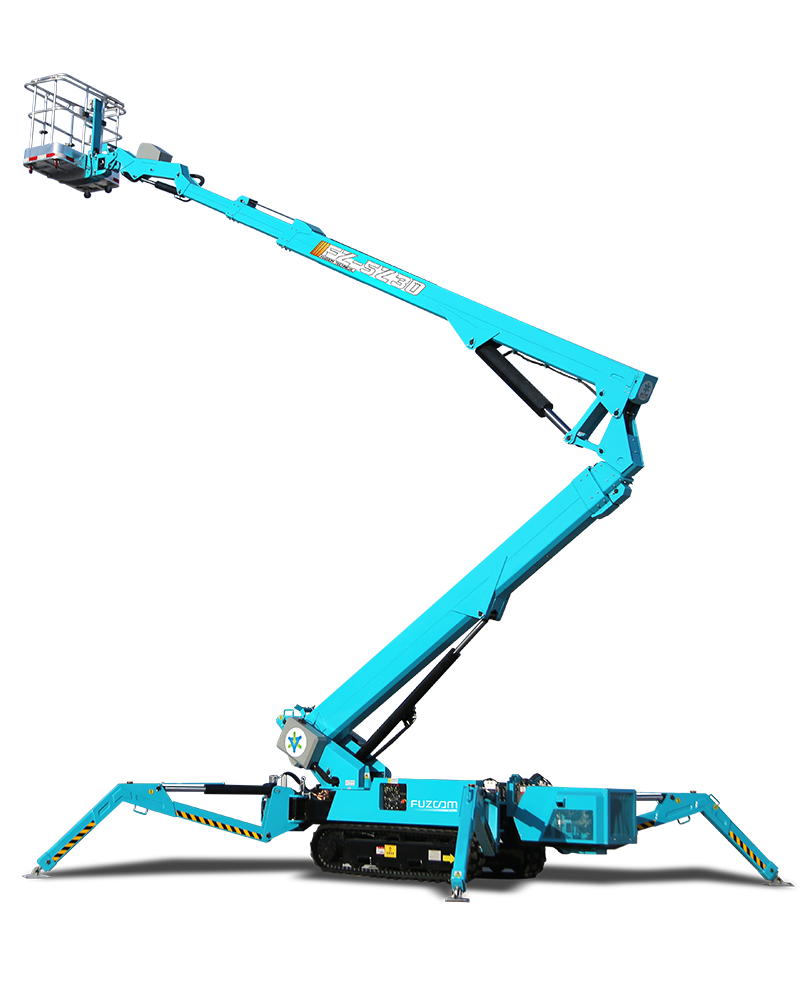

FZ-SZ30

• Compact Design • Intuitive control system • Wireless Remote Control • Adjustable outreach • Easy to Operate and Maintenance • All-Terrain Performance • Dual Power Source

Send Inquiry

Parameters	FZ-SZ30（Diesel + AC）
Working Height	30m
Articulation Height	28m
Wind Test	12.5m/s

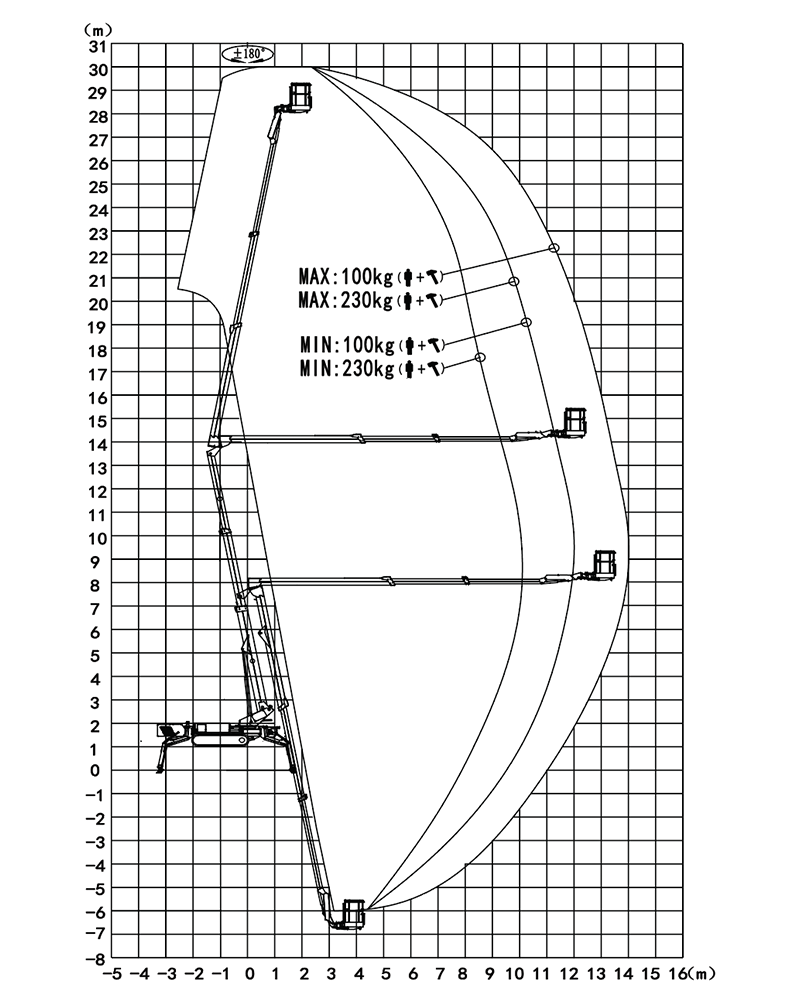

Outreach	12m(230kg)14m(120kg)
Boom Tilting	0 to 80°
Jib Tilting	+80%-90°
Basket Rotation	+90%-90°
Turret Rotation	360°(Discontinuous)
Max Lift Capacity	230 kg(2 persons)
Basket Size	1.25x0.68x1.1m
Gradeability	17°(30%)
Diving Speed	0-1.5km/h
Weight	5600kg
Diesel Engine	15.9 Kw Kuota Diesel Engine-D902
Fuel Tank Capacity	30L
Hydraulic Oil Tank Capacity	100L
Battery	-
Battery Capacity	-
Electric Power	380V three-phase electric motor
Working Temperature	-20°~40° celsius

Standard Features		Optional
✔	Powerful KUBOTA diesel engine (Diesel+AC)	✔	Engine heater
✔	3-phase electric motor	✔	Non-marking tracks
✔	173ah LiFePO4 Battery (EV+AC)	✔	Larger plates for outriggers
✔	230 V power outlets on the platform	✔	LED spotlights for the platform
✔	2 persons with tools 230kg load capacity platform	✔	Hose to the platform (air/water)
✔	Automatic leveling ofthe outriggers	✔	Diesel Engine + Electrical
✔	Proportional outreach monitoring system	✔	Battery + Electrical
✔	Electric rotation of the platform	✔	Basket rotation
✔	Hand pump-powered emergency lowering
✔	Lower controls with integrated service display
✔	Crawler all-terrain tracks
✔	Wireless joysticks control
✔	Overload alarm
✔	Signal horn
✔	Remote control for driving and outriggers
✔	Outrigger beacons
✔	Double-person platform
✔	Tool trays on the platformy

Porduct Manual FZ-SZ30.pdf

File size: 4.5MB
