FZ-ETC10

Overview Specifications Standard and Options Documentation Operation video

FZ-ETC10

• Compact Design • Intuitive control system • Wireless Remote Control • Easy to Operate and Maintenance • All-Terrain Performance

Send Inquiry

Working Parameters	FZ-ETC10
Working Eight	10m
Platform Height	8m

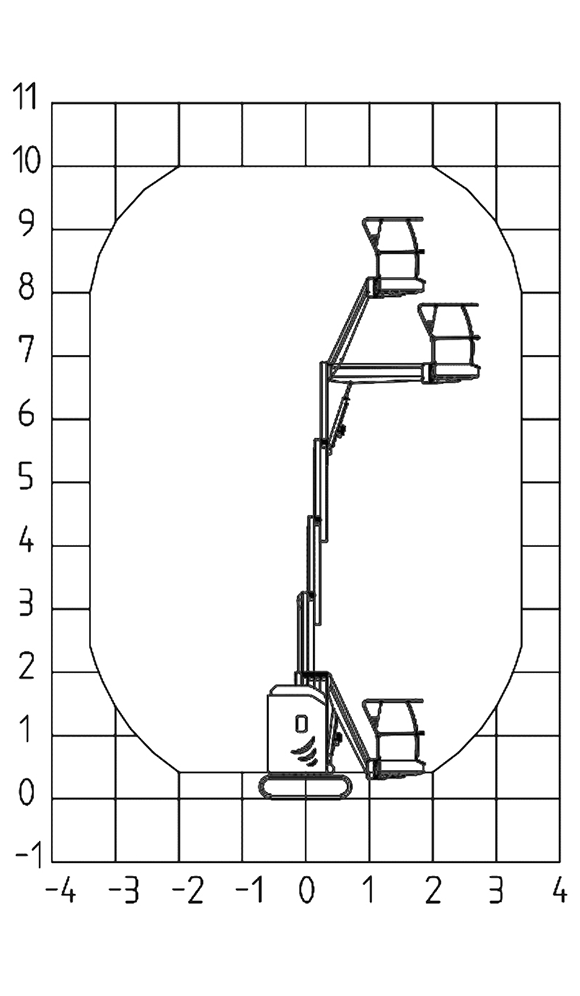

Operating Range	3.4m
Working Tilt Angel	3°
Structural Rotation	+120°/-120°
Max Lift Capacity	200 kg(2 Person)
Basket Size	1.1x0.7x1.1m
Driving Parameters
Driving Speed (High)	1.2km/h
Driving Speed (Low)	0.6km/h
Gradeability	17°(30%)
Inner & Outer Turning Radius	0/2m
Machine Parameters
Total Weight	2750kg
Overal Length	2.78m
Machine Width	1.2m
Machine Height	2m
Battery Capacity	240Ah
Total Power Voltage	48V
Control Voltage	12V
Charger Power Output	50Ah(48V)

Standard Features			Optional
✔	Main boom telescopic	Telescopic action of the main boom	✔	Non-marking tracks
✔	Crank arm luffing	The crank arm performs a luffing action to adjust the working height and amplitude	✔	LED spotlights for the platform
✔	Turntable rotation	The turntable rotates to make the working platform close to the working surface
✔	Remote control	The remote control box can operate the whole vehicle
✔	Crawler walking	The speed of the left and right crawlers can be adjusted steplessly
✔	Load limit	After the platform exceeds the allowable load,the remote control and the vehicle control box will give an alarm, and the working device will stop
✔	High and low speed walking	High-speed and low-speed walking modes can be selected according to the road environment
✔	High-speed travel restrictions	When the platform leaves the storage position, the equipment restricts high- speed walking and only allows low-speed walking

Porduct Manual FZ-ETC10.pdf

File size: 2.0MB
