FZ-SZ18A

Telescopic Type

Overview Specifications Standard and Options Documentation Operation video

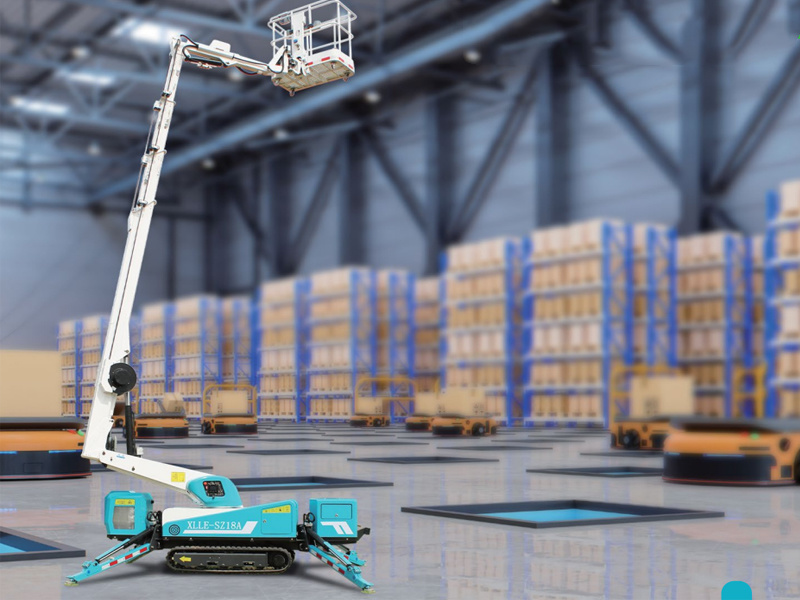

FZ-SZ18A

• Compact Design • Intuitive control system • Wireless Remote Control • Adjustable outreach • Easy to Operate and Maintenance • All-Terrain Performance • Dual Power Source

Send Inquiry

Parameters	FZ-SZ18A（Diesel + AC）	FZ-SZ18A（EV + AC）
Working Height	18m	18m
Wind Test	12.5m/s	12.5m/s
Outreach	7.4m (230kg) 9m (120kg)	7.4m (230kg) 9m (120kg)
Boom Tilting	0 to 80°	0 to 80°
Jib Tilting	+80%/-90°	+80%/-90°
Basket Rotation	+90°/-90°	+90°/-90°
Turret Rotation	360°(Discontinuous)	360°(Discontinuous)
Max Lift Capacity	230 kg (2 persons)	230 kg (2 persons)
Basket Size	1.25 x 0.68 x 1.1m	1.25 x 0.68 x 1.1m
Gradeability	20° (36%)	20° (36%)
Diving Speed	0-1.5 km/h	0-1.5 km/h
Weight	2800 kg	2800 kg
Diesel Engine	Kubota (Japan)	-
Fuel Tank Capacity	15L	-
Hydraulic Oil Tank Capacity	35L	35L
Electric Power	220V single phase electric motor	220V single phase electric motor
Working Temperature	-20°~40° celsius	-20°~40° celsius

Standard Features		Optional
✔	Powerful KUBOTA diesel engine (Diesel+AC)	✔	Engine heater
✔	Single-phase electric motor	✔	Non-marking tracks
✔	173ah LiFePO4 Battery (EV+AC)	✔	Larger plates for outriggers
✔	230 V power outlets on the platform	✔	LED spotlights for the platform
✔	2 persons with tools 230kg load capacity platform	✔	Hose to the platform (air/water)
✔	Automatic leveling ofthe outriggers	✔	Diesel Engine + Electrical
✔	Proportional outreach monitoring system	✔	Battery + Electrical
✔	Electric rotation of the platform	✔	Basket rotation
✔	Hand pump-powered emergency lowering
✔	Lower controls with integrated service display
✔	Crawler all-terrain tracks
✔	Wireless joysticks control
✔	Overload alarm
✔	Signal horn
✔	Remote control for driving and outriggers
✔	Outrigger beacons
✔	Double-person platform
✔	Tool trays on the platformy

Porduct Manual FZ-SZ18A.pdf

File size: 2.2MB
